BUILD IN 3 STEPS AVR WITH WIDE INPUT RANGE OF INPUT 155 ~ 270 V

• Output short circuit protection
• Overload protection
• Overcharge protection
• Sleek and compact design with CPU control
• Intelligent battery management
• Inverter compatible
• Boost and buck AVR for voltage stabilization

TECHNICAL SPECIFICATION:

• Capacity : 1050 VA
• I/P Voltage Range : 155 ~ 270 V
• Frequency : 50Hz ±10%
• AVR Voltage Range : 200 ~ 255 V
• Frequency Regulation : 50Hz ±5%
• Power Output : 525W
• Power Factor : 0.6 Typical
• Output Waveform (Mains) : Sine Wave
• Battery Type : 12V 4.5 AH X 2 ,
• Backup Time : Min 12 mins with 2 PC+ 2 x15″ Monitor
• Output Voltage(Battery Mode) : 230 ±8%
• Frequency (Battery Mode) : 50Hz±5%
• Output Waveform(Battery Mode) : Modified Sinewave
• Recharge Time : < 8 Hrs. up to 90 %
• Protection : Auto-protection Battery Deep Discharge / Overcharge
• Transfer time Typical < 4 msec
• Battery Alarm : Beeping every 0.5 sec
• Protection : Input Fuse / Surge Protection
• fuse for overload & short circuit protection
• Over load Protection : as load over 10%,UPS auto shut down in 13seconds
• Output Short Circuit : UPS output cut-off immediately
• Operating Temperature : 1 ~ 50 degrees Celcius, Power Cord Length : 1.5 m

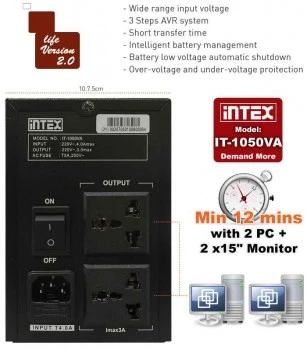

• Total Outlet : 2 Nos. universal socket; 1 No. mains outlet
